System Architecture¶

Component Architecture¶

Need: (ARCH) The Thermal Sensor Interface Module (TSIM) shall consist of three components: Sensor Driver, Temperature Filter, and State Machine. ARCH_001

status: active

tags: architecture, components

links outgoing: REQ_SAFETY_001, REQ_SAFETY_002, REQ_SAFETY_003

links incoming: REQ_SAFETY_001, ARCH_SEOOC_002, TEST_METHOD_002, TEST_END_TO_END_001, CODE_IMPL_001

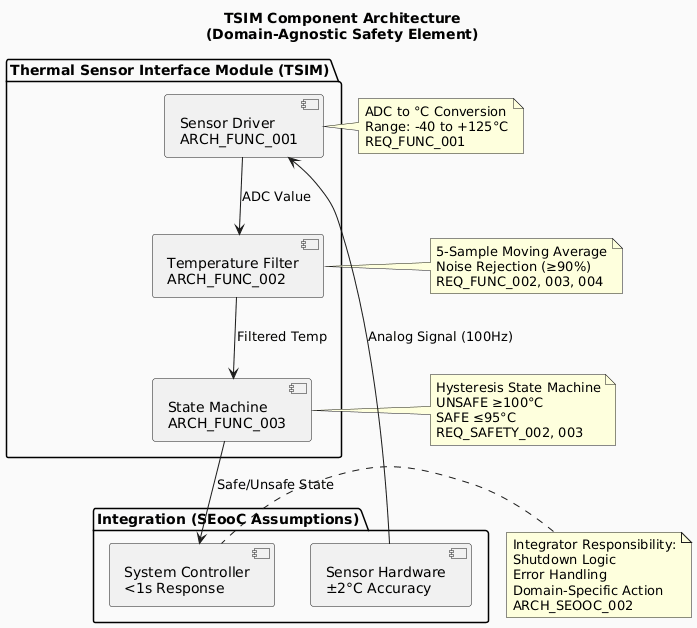

@startuml TSIM_Component_Architecture
!define COMPONENT_COLOR #E1F5FF
!define INTERFACE_COLOR #FFF9C4
!define EXTERNAL_COLOR #FFCCBC

skinparam backgroundColor #FAFAFA

title TSIM Component Architecture\n(Domain-Agnostic Safety Element)

package "Thermal Sensor Interface Module (TSIM)" {
component SensorDriver as "Sensor Driver\nARCH_FUNC_001"
component TempFilter as "Temperature Filter\nARCH_FUNC_002"
component StateMachine as "State Machine\nARCH_FUNC_003"
}

package "Integration (SEooC Assumptions)" {
component SensorHW as "Sensor Hardware\n±2°C Accuracy"
component SystemCtrl as "System Controller\n<1s Response"
}

SensorHW --> SensorDriver : Analog Signal (100Hz)
SensorDriver --> TempFilter : ADC Value
TempFilter --> StateMachine : Filtered Temp
StateMachine --> SystemCtrl : Safe/Unsafe State

note right of SensorDriver
ADC to °C Conversion
Range: -40 to +125°C
REQ_FUNC_001
end note

note right of TempFilter
5-Sample Moving Average
Noise Rejection (≥90%)
REQ_FUNC_002, 003, 004
end note

note right of StateMachine
Hysteresis State Machine
UNSAFE ≥100°C
SAFE ≤95°C
REQ_SAFETY_002, 003
end note

note left of SystemCtrl
Integrator Responsibility:
Shutdown Logic
Error Handling
Domain-Specific Action
ARCH_SEOOC_002
end note

@enduml — TSIM Component Architecture - Links: *(ARCH) The Thermal Sensor I... (ARCH_001)*, *(ARCH) The Sensor Driver sh... (ARCH_FUNC_001)*, *(ARCH) The Temperature Filt... (ARCH_FUNC_002)*, *(ARCH) The State Machine sh... (ARCH_FUNC_003)*¶

Data Flow & Timing¶

@startuml TSIM_DataFlow
!define PROCESS_COLOR #B3E5FC
!define STORE_COLOR #C8E6C9
!define DATA_COLOR #FFF9C4

skinparam backgroundColor #FAFAFA

title TSIM Data Flow Diagram\nWith 100ms Latency Budget (REQ_SAFETY_002)

rectangle "Timing Budget: 0-100ms" #FFE0B2 {
rectangle "0-10ms: Sensor Read" #B3E5FC {
component "ADC Input" as ADC1
component "Convert to °C" as Conv
}

rectangle "10-20ms: Filter" #B3E5FC {
component "5-Sample Buffer" as Buf
component "Moving Average" as Avg
}

rectangle "20-50ms: State Machine" #B3E5FC {
component "Threshold Check\n(≥100°C?)" as Thresh
component "Hysteresis\n(≤95°C?)" as Hyst
component "Output State" as Out
}

rectangle "50-100ms: Safety Margin" #FFCDD2 {
note right
Reserved for:
Real-time delays
Integration overhead
end note
}
}

ADC1 --> Conv : Raw 12-bit\nARCH_SIGNAL_001
Conv --> Buf : Temperature\nARCH_FUNC_001
Buf --> Avg : Buffer Full
Avg --> Thresh : Filtered Temp\nARCH_SIGNAL_002
Thresh --> Hyst : Temperature\nARCH_FUNC_002
Hyst --> Out : State Decision\nARCH_FUNC_003
Out --> Out : SAFE/UNSAFE\nARCH_SIGNAL_003

note bottom of Conv
REQ_FUNC_001
Range: -40 to +125°C
end note

note bottom of Avg
REQ_FUNC_002
Noise Rejection
end note

note bottom of Out
REQ_SAFETY_002: Within 100ms
REQ_SAFETY_003: Safe/Unsafe
REQ_FUNC_003: ≥100°C
REQ_FUNC_004: ≤95°C (hysteresis)
end note

@enduml — TSIM Data Flow (Budget: *(SR) The system shall detec... (REQ_SAFETY_002)* @ 100ms) - Architecture: *(ARCH) The Sensor Driver sh... (ARCH_FUNC_001)*, *(ARCH) The Temperature Filt... (ARCH_FUNC_002)*, *(ARCH) The State Machine sh... (ARCH_FUNC_003)*¶

The diagram above shows the complete data flow from sensor input through each processing stage, with timing allocations required by (SR) The system shall detec... (REQ_SAFETY_002).

Need: (ARCH) The Sensor Driver shall read analog input at 100Hz sampling rate. ARCH_FUNC_001

status: active

tags: sampling, timing

links outgoing: REQ_FUNC_001

links incoming: REQ_FUNC_001, TEST_METHOD_001, TEST_CONVERSION_001, CODE_IMPL_001

Rationale: 100Hz > 2× highest temperature change rate expected in any domain.

Tests: (TEST) TEST_CONVERSION_001:... (TEST_CONVERSION_001)

Need: (ARCH) The Temperature Filter shall apply a 5-sample moving average before state evaluation. ARCH_FUNC_002

status: active

tags: filtering, noise-rejection

links outgoing: REQ_FUNC_002

links incoming: REQ_FUNC_002, TEST_METHOD_001, TEST_FILTER_001, CODE_IMPL_001

Tests: (TEST) TEST_FILTER_001: Noi... (TEST_FILTER_001)

Need: (ARCH) The State Machine shall evaluate temperature against thresholds and output state transitions within 50ms of detection. ARCH_FUNC_003

status: active

tags: state-machine, timing, response

links outgoing: REQ_SAFETY_002, REQ_FUNC_003, REQ_FUNC_004

links incoming: REQ_SAFETY_002, REQ_FUNC_003, ARCH_DESIGN_001, TEST_METHOD_001, TEST_METHOD_003, TEST_THRESHOLD_001, TEST_END_TO_END_001, CODE_IMPL_001

Timing Budget: 50ms margin within 100ms requirement ((SR) The system shall detec... (REQ_SAFETY_002)).

Tests: (TEST) TEST_THRESHOLD_001: ... (TEST_THRESHOLD_001), (TEST) TEST_HYSTERESIS_001:... (TEST_HYSTERESIS_001)

Signal Definition¶

Need: (ARCH) Raw Temperature Signal shall be a 12-bit analog input representing -40°C to +125°C. ARCH_SIGNAL_001

status: active

tags: signal, input

links outgoing: REQ_FUNC_001

links incoming: REQ_FUNC_001, TEST_CONVERSION_001

ADC Resolution: 12-bit (4096 steps)

Range Mapping:

0 LSB → -40°C
2048 LSB → 42.5°C
4095 LSB → ~125°C

Tested by: (TEST) TEST_CONVERSION_001:... (TEST_CONVERSION_001)

Need: (ARCH) Temperature Reading shall be a 16-bit signed integer in units of 0.1°C. ARCH_SIGNAL_002

status: active

tags: signal, intermediate

links outgoing: REQ_FUNC_002

links incoming: REQ_FUNC_002, ARCH_DESIGN_002, TEST_FILTER_001

Range: -400 to +1250 (representing -40.0°C to +125.0°C)

Tested by: (TEST) TEST_FILTER_001: Noi... (TEST_FILTER_001)

Need: (ARCH) State Output shall be a 1-bit signal: 0=SAFE, 1=UNSAFE. ARCH_SIGNAL_003

status: active

tags: signal, output

links outgoing: REQ_SAFETY_002, REQ_SAFETY_003, REQ_FUNC_003, REQ_FUNC_004

links incoming: REQ_SAFETY_002, REQ_SAFETY_003

Tested by: (TEST) TEST_THRESHOLD_001: ... (TEST_THRESHOLD_001), (TEST) TEST_HYSTERESIS_001:... (TEST_HYSTERESIS_001)

Error Handling¶

Need: (ARCH) If sensor reading is invalid (out of physical bounds), the module shall remain in current state and log an error. ARCH_ERROR_001

status: active

tags: error-handling, robustness

links outgoing: REQ_SAFETY_001

links incoming: TEST_ERROR_RECOVERY_001

Rationale: Conservative approach—hold last safe state rather than guess.

Need: (ARCH) The module shall track sensor read failures; after 10 consecutive failures, it shall enter UNSAFE state. ARCH_ERROR_002

status: active

tags: error-handling, safety

links outgoing: REQ_SAFETY_002, REQ_SAFETY_003

links incoming: REQ_SAFETY_003, TEST_FAIL_SAFE_001

Rationale: Domain-agnostic fail-safe for sensor degradation (medical, industrial, automotive contexts).

Tested by: (TEST) TEST_FAIL_SAFE_001: ... (TEST_FAIL_SAFE_001)

SEooC Boundary Definition¶

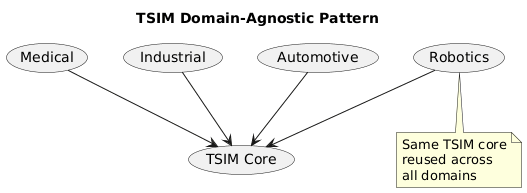

@startuml TSIM_DomainApplicability

title TSIM Domain-Agnostic Pattern

usecase "TSIM Core" as Core
usecase "Medical" as Med
usecase "Industrial" as Ind
usecase "Automotive" as Auto
usecase "Robotics" as Rob

Med --> Core
Ind --> Core
Auto --> Core
Rob --> Core

note bottom
Same TSIM core
reused across
all domains
end note

@enduml — Domain-Agnostic SEooC Pattern - Architecture: *(ARCH) The TSIM shall be a ... (ARCH_SEOOC_001)*, *(ARCH) TSIM does not implem... (ARCH_SEOOC_002)*¶

Need: (ARCH) The TSIM shall be a Safety Element out of Context (SEooC) assuming the integrating system provides safe shutdown capability. ARCH_SEOOC_001

status: active

tags: seooc, integration, safety-case

links outgoing: REQ_SAFETY_001, REQ_SAFETY_002

links incoming: REQ_SAFETY_001, ARCH_SEOOC_002

Integration Assumptions:

Integrating system has verified shutdown mechanism
System controller responds to UNSAFE state within 1 second
Sensor hardware meets ±2°C accuracy
Operating environment is within -40°C to +80°C ambient

Domain Examples (shown above):

Medical: Incubator/sterilizer temperature interlock (IEC 60601)
Industrial: Process control thermal limits (IEC 61508)
Automotive: Battery thermal management (ISO 26262)
Robotics: Motor overtemperature protection (ISO 13849)

Need: (ARCH) TSIM does not implement actual shutdown or corrective action; responsibility transfers to integrating system. ARCH_SEOOC_002

status: active

tags: seooc, responsibility

links outgoing: ARCH_SEOOC_001, ARCH_001

Rationale: Enables domain-agnostic reuse across medical (controlled environments), industrial (process control), robotics (motor shutdown), and automotive (powertrain management).
