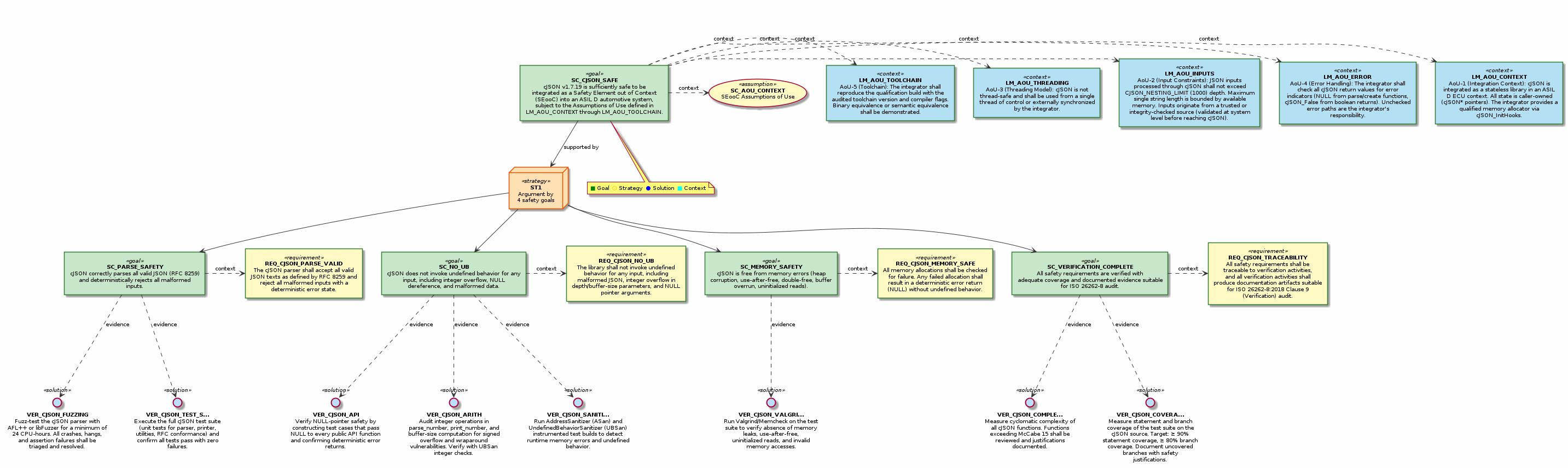

GSN Safety Case — cJSON v1.7.19 SEooC (ISO 26262-10:2018)

The following safety case is structured using the Goal Structuring Notation (GSN) and targets ISO 26262-10:2018 SEooC qualification of cJSON v1.7.19 for ASIL D integration. Goals are linked to their supporting strategies, sub-goals, and solutions (evidence). Context elements capture the Assumptions of Use from Lifecycle Management.

Top-Level Goal

Safety Case: cJSON v1.7.19 is sufficiently safe to be integrated as a Safety Element out of Context (SEooC) into an ASIL D automotive system, subject to the Assumptions of Use defined in LM_AOU_CONTEXT through LM_AOU_TOOLCHAIN. SC_CJSON_SAFE
status: active
tags: safety-case, top-level
links outgoing: LM_AOU_CONTEXT, LM_AOU_INPUTS, LM_AOU_THREADING, LM_AOU_ERROR, LM_AOU_TOOLCHAIN
links incoming: LM_AOU_CONTEXT, LM_AOU_INPUTS, LM_AOU_THREADING, LM_AOU_ERROR, LM_AOU_TOOLCHAIN, SC_PARSE_SAFETY, SC_MEMORY_SAFETY, SC_NO_UB, SC_VERIFICATION_COMPLETE, SC_AOU_CONTEXT

Parsing Safety

Safety Case: cJSON correctly parses all valid JSON (RFC 8259) and deterministically rejects all malformed inputs. SC_PARSE_SAFETY
status: active
tags: safety-case, parsing
links outgoing: REQ_CJSON_PARSE_VALID, VER_CJSON_TEST_SUITE, VER_CJSON_FUZZING, SC_CJSON_SAFE
links incoming: SC_PARSE_EVIDENCE
Safety Case: Solution: Parsing Evidence SC_PARSE_EVIDENCE
status: active
tags: safety-case, evidence, parsing
links outgoing: SC_PARSE_SAFETY

162 Unity tests covering parsing edge cases, including malformed JSON, deep nesting, and boundary conditions. The test suite passes under standard and ASan+UBSan instrumented builds.

Evidence: Execute the full cJSON test... (VER_CJSON_TEST_SUITE). Fuzzing campaign planned: Fuzz-test the cJSON parser ... (VER_CJSON_FUZZING).

Memory Safety

Safety Case: cJSON is free from memory errors (heap corruption, use-after-free, double-free, buffer overrun, uninitialized reads). SC_MEMORY_SAFETY
status: active
tags: safety-case, memory
links outgoing: REQ_CJSON_MEMORY_SAFE, VER_CJSON_SANITIZERS, VER_CJSON_VALGRIND, SC_CJSON_SAFE
links incoming: SC_MEMORY_EVIDENCE
Safety Case: Solution: Memory Safety Evidence SC_MEMORY_EVIDENCE
status: active
tags: safety-case, evidence, memory
links outgoing: SC_MEMORY_SAFETY

ASan+UBSan instrumentation on full test suite returns CLEAN — no heap out-of-bounds, use-after-free, or stack buffer overflow. ASan’s LeakSanitizer detects memory leaks. A Valgrind/Memcheck gap is documented with ASan mitigation (see Gap Documentation).

Evidence: Run AddressSanitizer (ASan)... (VER_CJSON_SANITIZERS), Run Valgrind/Memcheck on th... (VER_CJSON_VALGRIND).

Undefined Behavior Freedom

Safety Case: cJSON does not invoke undefined behavior for any input, including integer overflow, NULL dereference, and malformed data. SC_NO_UB
status: active
tags: safety-case, ub
links outgoing: REQ_CJSON_NO_UB, VER_CJSON_SANITIZERS, VER_CJSON_ARITH, VER_CJSON_API, SC_CJSON_SAFE
links incoming: SC_UB_EVIDENCE
Safety Case: Solution: UB Freedom Evidence SC_UB_EVIDENCE
status: active
tags: safety-case, evidence, ub
links outgoing: SC_NO_UB

UBSan integer+pointer checks return CLEAN on full test suite. Arithmetic audit (Audit integer operations in... (VER_CJSON_ARITH)) confirms no signed overflow in parse_number/print_number. NULL-pointer safety verified by dedicated test cases (Verify NULL-pointer safety ... (VER_CJSON_API)). Compiler warning audit with -Werror -Wconversion — zero warnings.

Evidence: Run AddressSanitizer (ASan)... (VER_CJSON_SANITIZERS), Audit integer operations in... (VER_CJSON_ARITH), Verify NULL-pointer safety ... (VER_CJSON_API), The qualified build uses a ... (IMPL_BUILD).

Verification Completeness

Safety Case: All safety requirements are verified with adequate coverage and documented evidence suitable for ISO 26262-8 audit. SC_VERIFICATION_COMPLETE
status: active
tags: safety-case, verification
links outgoing: REQ_CJSON_TRACEABILITY, VER_CJSON_COVERAGE, VER_CJSON_COMPLEXITY, SC_CJSON_SAFE
links incoming: SC_VERIFICATION_EVIDENCE
Safety Case: Solution: Verification Completeness Evidence SC_VERIFICATION_EVIDENCE
status: active
tags: safety-case, evidence, coverage
links outgoing: SC_VERIFICATION_COMPLETE

Statement coverage 88.1% (1,788/2,029 lines), function coverage 98.7% (149/151). All uncovered branches are in error-recovery paths (malloc failure, depth limit) justified via Measure statement and branc... (VER_CJSON_COVERAGE). Static analysis (cppcheck --all --inconclusive) produces reviewed report. Complexity analysis: one function (parse_string, CC=18) exceeds McCabe 15 with documented justification.

Evidence: Measure statement and branc... (VER_CJSON_COVERAGE), Measure cyclomatic complexi... (VER_CJSON_COMPLEXITY), Run static analysis (cppche... (VER_CJSON_STATIC).

Context

Safety Case: SEooC Assumptions of Use SC_AOU_CONTEXT
status: active
tags: safety-case, context, aou
links outgoing: SC_CJSON_SAFE

Per ISO 26262-10:2018 §6.4.3, the following Assumptions of Use apply to the cJSON SEooC qualification:

  1. cJSON is integrated as a stateless library with caller-owned state and a qualified memory allocator provided by the integrator via cJSON_InitHooks.

  2. JSON inputs do not exceed CJSON_NESTING_LIMIT (1000) depth; max string length is bounded by available memory; inputs originate from a trusted or integrity-checked source.

  3. Single-threaded use or external synchronization by integrator.

  4. All cJSON return values are checked by integrator; NULL/cJSON_False indicate errors.

  5. Qualification build is reproduced with audited toolchain and compiler flags.

See: AoU-1 (Integration Context)... (LM_AOU_CONTEXT), AoU-2 (Input Constraints): ... (LM_AOU_INPUTS), AoU-3 (Threading Model): cJ... (LM_AOU_THREADING), AoU-4 (Error Handling): The... (LM_AOU_ERROR), AoU-5 (Toolchain): The inte... (LM_AOU_TOOLCHAIN).
